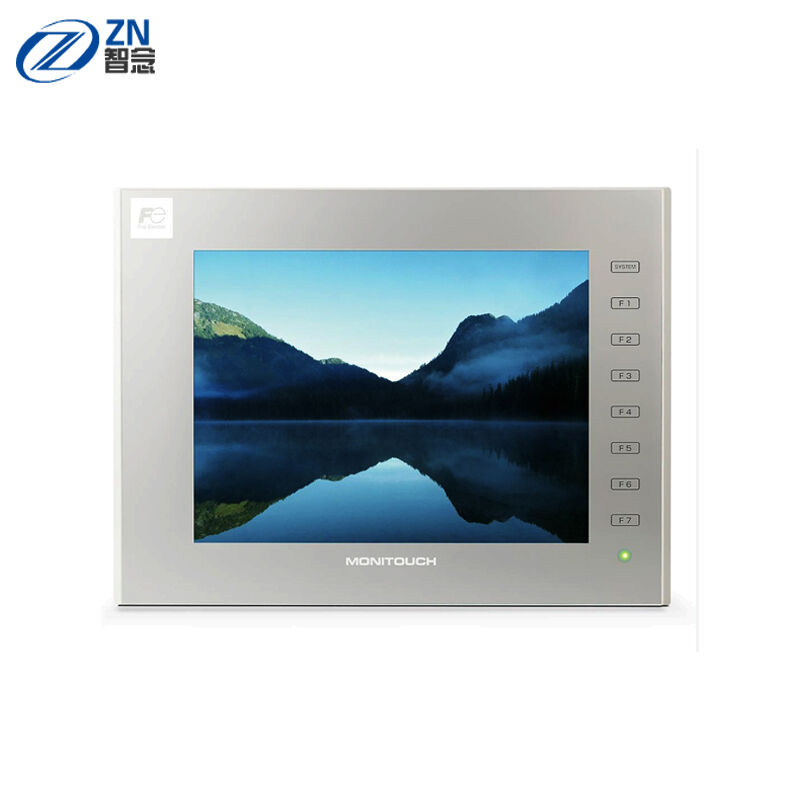

V9100iC FUJI Hakko Monitouch V9 Series Touch Screen Panel 10.4 Inches HMI

Name: V9100iC FUJI Hakko Monitouch V9 Series Touch Screen Panel 10.4 Inches HMI
Brand: Changsha Zhinian Automation Equipment Co., Ltd.
SKU: V9100iC
Price: 650.00 USD
Availability: InStock

Место происхождения	Китай/Япония
Фирменное наименование	FUJI
Номер модели	V9100iC

Подробная информация о продукции

Состояние:

100% первоначальное и новое

Гарантия:

1 год

упаковка:

оригинальная упаковка

Способы доставки:

ДХЛ, Федерал Экспресс, ЭМС

минимальный заказ:

1 шт.

Номер модели:

V9100iC

Размер экрана:

10,4 дюйма

Условия оплаты и доставки

Количество мин заказа

1/pc

Цена

$500.00 - $800.00/Pieces

Упаковывая детали

Картонная упаковка

Условия оплаты

Т/Т, Вестерн Юнион

Поставка способности

10 шт/в неделю

Описание продукта

V9100iC FUJI Hakko Monitouch V9 Series Touch Screen Panel 10.4 Inches HMI

Dimensions and Part Names

		V9100iC
Power supply	Rated voltage	100-240V AC/ 24V DC
	Permissible range of voltage	AC: -15%, +10%/ DC: ±10%
	Permissible momentary power failure	AC within 20ms, DC within 1ms
	Demand (maximum rating)	AC: 50VA or less/ DC: 17W or less
Insulation resistance		DC500V 10MΩ or more
Physical environment	Ambient temperature	0～50℃*1
	Ambient humidity	85%RH or less (without dew condensation)*1
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	-10～60℃*1
	Storage humidity	85%RH or less (without dew condensation)*1
	Overvoltage category	Category II
	Pollution degree	Pollution degree 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,500Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Structure	Front panel:Complies with IP66, Type 4X/13 *2 (when waterproof gasket is installed) Rear cover:Complies with IP20 Form: Single unit, Installation method: Panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	303.8×231.0×54.0
	Panel cutout (mm)	289.0×216.2(+0.5/-0)
	Weight (display only)	Approx. 2.0 kg
Case color		Light gray (black front housing for black model)
Material		PC resin
