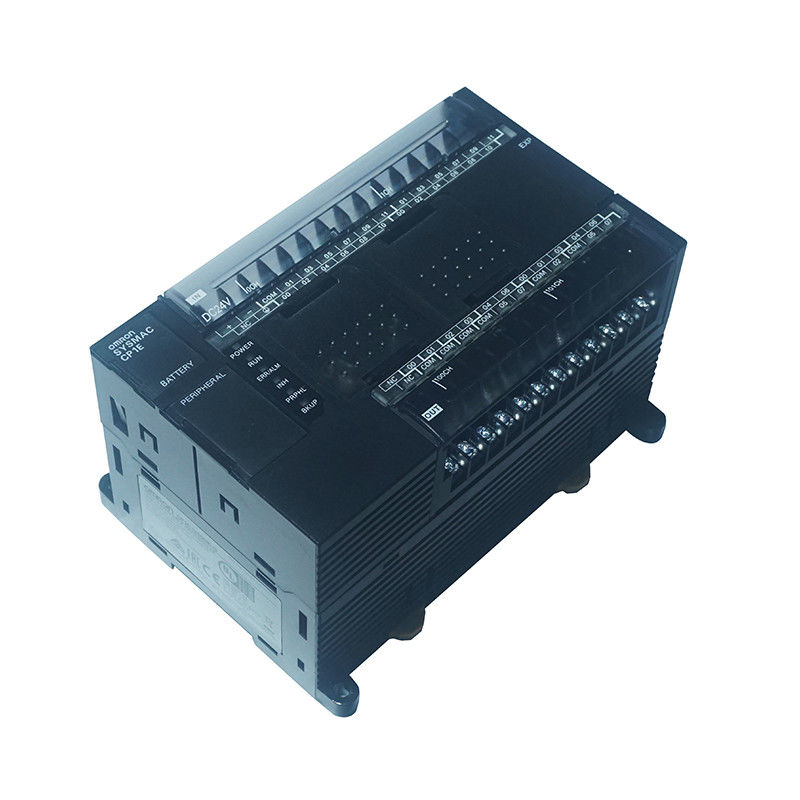

Electronic components low cost PLC CP1E-E14SDR-A Omron Japan

Electronic components low cost PLC CP1E-E14SDR-A Omron Japan

Electronic components low cost PLC CP1E-E14SDR-A Omron Japan

Место происхождения	Япония
Фирменное наименование	Omron
Номер модели	CP1E-E10DR-A

Подробная информация о продукции

Серия:

Серия CP1E

Основная функция:

Блок C.P.U.

Электропитание:

100-240V AC, 50/60Hz, 70VA

Тип выхода:

Реле

Входные сигналы:

8

Выходы:

6

Тип:

CP1E

Гарантия:

1 год

Оплата:

Соединение TT.Western

Время выполнения:

В запасе

Порт:

дискретный

Условия оплаты и доставки

Количество мин заказа

1/PC

Цена

$10.00 - $500.00/Pieces

Упаковывая детали

первоначальная коробка

Поставка способности

200 часть/частей в День

Описание продукта

Electronic components low cost PLC CP1E-E14SDR-A Omron Japan

Electronic components low cost PLC CP1E-E14SDR-A Omron Japan 0

Applicable standards

Ask your OMRON representative for the most recent applicable standards for each model.

Basic Model

Renewal-type

E[][]S-type CP1E CPU Units (Built-in USB port)

Product name	Specifications						External power supply (24 VDC) (A)	Current consump- tion (A)		Model
Product name	Power Supply	In- puts	Out- puts	Out- put type	Program capacity	Data memory capacity	External power supply (24 VDC) (A)	5 V	24 V	Model
E[][]S-type CPU Units with 14 I/O Points	100 to 240 VAC	8	6	Relay	2K steps	2K words	--	0.16	0.07	CP1E-E14SDR-A *
E[][]S-type CPU Units with 20 I/O Points	100 to 240 VAC	12	8	Relay	2K steps	2K words	--	0.17	0.08	CP1E-E20SDR-A *
E[][]S-type CPU Units with 30 I/O Points	100 to 240 VAC	18	12	Relay	2K steps	2K words	0.30	0.17	0.07	CP1E-E30SDR-A *
E[][]S-type CPU Units with 40 I/O Points	100 to 240 VAC	24	16	Relay	2K steps	2K words	0.30	0.17	0.09	CP1E-E40SDR-A *
E[][]S-type CPU Units with 60 I/O Points	100 to 240 VAC	36	24	Relay	2K steps	2K words	0.30	0.17	0.13	CP1E-E60SDR-A *

* Product no longer available to order.

Normal-type

E[][]-type CP1E CPU Units (Built-in USB port)

Product name	Specifications						External power supply (24 VDC) (A)	Current consump- tion (A)		Model
Product name	Power Supply	In- puts	Out- puts	Output type	Program capacity	Data memory capacity	External power supply (24 VDC) (A)	5 V	24 V	Model
E[][]-type CPU Units with 10 I/O Points	100 to 240 VAC	6	4	Relay	2K steps	2K words	---	0.08	0.04	CP1E-E10DR-A
				Transistor (sinking)			---	0.11	---	CP1E-E10DT-A
				Transistor (sourcing)			---	0.11	---	CP1E-E10DT1-A
	24 VDC			Relay			---	0.08	0.04	CP1E-E10DR-D
				Transistor (sinking)			---	0.11	---	CP1E-E10DT-D
				Transistor (sourcing)			---	0.11	---	CP1E-E10DT1-D
E[][]-type CPU Units with 14 I/O Points	100 to 240 VAC	8	6	Relay	2K steps	2K words	---	0.16	0.07	CP1E-E14DR-A *
E[][]-type CPU Units with 20 I/O Points	100 to 240 VAC	12	8	Relay	2K steps	2K words	---	0.17	0.08	CP1E-E20DR-A *
E[][]-type CPU Units with 30 I/O Points	100 to 240 VAC	18	12	Relay	2K steps	2K words	0.30	0.17	0.07	CP1E-E30DR-A *
E[][]-type CPU Units with 40 I/O Points	100 to 240 VAC	24	16	Relay	2K steps	2K words	0.30	0.17	0.09	CP1E-E40DR-A *

* Product no longer available to order.

Application Model

Renewal-type

N[][]S1-type CP1E CPU Units (Built-in RS-232C, RS-485, USB ports)

Product name	Specifications						Ex- ternal power supply (24 VDC) (A)	Current consump- tion (A)		Model
Product name	Power Supply	In- puts	Out- puts	Output type	Pro- gram ca- pacity	Data memory ca- pacity	Ex- ternal power supply (24 VDC) (A)	5 V	24 V	Model
N[][]S1-type CPU Units with 30 I/O Points	100 to 240 VAC	18	12	Relay	8K steps	8K words	0.30	0.21	0.07	CP1E-N30S1DR-A *
	DC24V			Transistor (sinking)			--	0.27	0.02	CP1E-N30S1DT-D *
	DC24V			Transistor (sourcing)			--	0.27	0.02	CP1E-N30S1DT1-D *
N[][]S1-type CPU Units with 40 I/O Points	100 to 240 VAC	24	16	Relay	8K steps	8K words	0.30	0.21	0.09	CP1E-N40S1DR-A *
	DC24V			Transistor (sinking)			--	0.31	0.02	CP1E-N40S1DT-D *
	DC24V			Transistor (sourcing)			--	0.31	0.02	CP1E-N40S1DT1-D *
N[][]S1-type CPU Units with 60 I/O Points	100 to 240 VAC	36	24	Relay	8K steps	8K words	0.30	0.21	0.13	CP1E-N60S1DR-A *
	DC24V			Transistor (sinking)			--	0.31	0.02	CP1E-N60S1DT-D *
	DC24V			Transistor (sourcing)			--	0.31	0.02	CP1E-N60S1DT1-D *

* Product no longer available to order.

N[][]S-type CP1E CPU Units (Built-in RS-232C, USB ports)

Product name	Specifications						Ex- ternal power supply (24 VDC) (A)	Current consump- tion (A)		Model
Product name	Power Supply	In- puts	Out- puts	Output type	Pro- gram ca- pacity	Data memory ca- pacity	Ex- ternal power supply (24 VDC) (A)	5 V	24 V	Model
N[][]S-type CPU Units with 30 I/O Points	100 to 240 VAC	18	12	Relay	8K steps	8K words	0.30	0.21	0.07	CP1E-N30SDR-A *
	DC24V			Transistor (sinking)			--	0.27	0.02	CP1E-N30SDT-D *
	DC24V			Transistor (sourcing)			--	0.27	0.02	CP1E-N30SDT1-D *
N[][]S-type CPU Units with 40 I/O Points	100 to 240 VAC	24	16	Relay	8K steps	8K words	0.30	0.21	0.09	CP1E-N40SDR-A *
	DC24V			Transistor (sinking)			--	0.31	0.02	CP1E-N40SDT-D *
	DC24V			Transistor (sourcing)			--	0.31	0.02	CP1E-N40SDT1-D *
N[][]S-type CPU Units with 60 I/O Points	100 to 240 VAC	36	24	Relay	8K steps	8K words	0.30	0.21	0.13	CP1E-N60SDR-A *
	DC24V			Transistor (sinking)			--	0.31	0.02	CP1E-N60SDT-D *
	DC24V			Transistor (sourcing)			--	0.31	0.02	CP1E-N60SDT1-D *

* Product no longer available to order.

Normal-type

N/NA[][]-type CP1E CPU Units (Built-in RS-232C, USB ports)

Product name	Specifications						Ex- ternal power supply (24 VDC) (A)	Current consump- tion (A)		Model
Product name	Power Sup- ply	Inputs	Out- puts	Output type	Pro- gram ca- pacity	Data mem- ory ca- pacity	Ex- ternal power supply (24 VDC) (A)	5 V	24 V	Model
N[][]-type CPU Units with 14 I/O Points	100 to 240 VAC	8	6	Relay	8K steps	8K words	---	0.17	0.07	CP1E-N14DR-A *
				Transistor (sinking)			---	0.22	0.02	CP1E-N14DT-A *
				Transistor (sourcing)			---	0.22	0.02	CP1E-N14DT1-A *
	24 VDC			Relay			---	0.17	0.07	CP1E-N14DR-D *
				Transistor (sinking)			---	0.22	0.02	CP1E-N14DT-D *
				Transistor (sourcing)			---	0.22	0.02	CP1E-N14DT1-D *
N[][]-type CPU Units with 20 I/O Points	100 to 240 VAC	12	8	Relay	8K steps	8K words	---	0.18	0.08	CP1E-N20DR-A *
				Transistor (sinking)			---	0.23	0.02	CP1E-N20DT-A *
				Transistor (sourcing)			---	0.23	0.02	CP1E-N20DT1-A *
	24 VDC			Relay			---	0.18	0.08	CP1E-N20DR-D *
				Transistor (sinking)			---	0.23	0.02	CP1E-N20DT-D *
				Transistor (sourcing)			---	0.23	0.02	CP1E-N20DT1-D *
N[][]-type CPU Units with 30 I/O Points	100 to 240 VAC	18	12	Relay	8K steps	8K words	0.3	0.21	0.07	CP1E-N30DR-A *
				Transistor (sinking)			0.3	0.27	0.02	CP1E-N30DT-A *
				Transistor (sourcing)			0.3	0.27	0.02	CP1E-N30DT1-A *
	24 VDC			Relay			---	0.21	0.07	CP1E-N30DR-D *
				Transistor (sinking)			---	0.27	0.02	CP1E-N30DT-D *
				Transistor (sourcing)			---	0.27	0.02	CP1E-N30DT1-D *
N[][]-type CPU Units with 40 I/O Points	100 to 240 VAC	24	16	Relay	8K steps	8K words	0.3	0.21	0.09	CP1E-N40DR-A *
				Transistor (sinking)			0.3	0.31	0.02	CP1E-N40DT-A *
				Transistor (sourcing)			0.3	0.31	0.02	CP1E-N40DT1-A *
	24 VDC			Relay			---	0.21	0.09	CP1E-N40DR-D *
				Transistor (sinking)			---	0.31	0.02	CP1E-N40DT-D *
				Transistor (sourcing)			---	0.31	0.02	CP1E-N40DT1-D *
N[][]-type CPU Units with 60 I/O Points	100 to 240 VAC	36	24	Relay	8K steps	8K words	0.3	0.21	0.13	CP1E-N60DR-A *
				Transistor (sinking)			0.3	0.31	0.02	CP1E-N60DT-A *
				Transistor (sourcing)			0.3	0.31	0.02	CP1E-N60DT1-A *
	24 VDC			Relay			---	0.21	0.13	CP1E-N60DR-D *
				Transistor (sinking)			---	0.31	0.02	CP1E-N60DT-D *
				Transistor (sourcing)			---	0.31	0.02	CP1E-N60DT1-D *
NA-type CPU Units with 20 I/O Points (Built-in analog)	100 to 240 VAC	12 (Built-in analog inputs: 2)	8 (Built-in analog outputs: 1)	Relay	8K steps	8K words	0.3	0.18	0.11	CP1E-NA20DR-A
	24 VDC			Transistor (sinking)			---	0.23	0.09	CP1E-NA20DT-D
	24 VDC			Transistor (sourcing)			---	0.23	0.09	CP1E-NA20DT1-D

* Product no longer available to order.

Optional Products

Battery Set

Product name	Specifications	Model
Battery Set	For N/NA[][](S[])-type CP1E CPU Units Note: Mount a Battery to an N/NA[][](S[])-type CPU Unit if the data in the following areas must be backed up for power interruptions. • DM Area (D) (except backed up words in the DM Area), Holding Area (H), Counter Completion Flags (C), Counter Present Values (C), Auxiliary Area (A), and Clock Function (Use batteries within two years of manufacture.)	CP1W-BAT01

Option Board (for CP1E N30/40/60 or NA20 CPU Units)

The Options cannot be used for CP1E N14/20, N30/40/60S(1), E10/14/20/30/40/60(S) CPU Units.

Product name		Specifications	Model
RS-232C Option Board		One RS-232C Option Board can be mounted to the Option Board slot.	CP1W-CIF01
RS-422A/485 Option Board		One RS-422A/485 Option Board can be mounted to the Option Board slot.	CP1W-CIF11
RS-422A/485 Isolated-type Option Board			CP1W-CIF12-V1
Ethernet Option Board		One Ethernet Option Board can be mounted to the Option Board slot. CP1E CPU Units are supported by CP1W-CIF41 version 2.0 or higher. When using CP1W-CIF41, CX-Programmer version 9.12 or higher is required.	CP1W-CIF41
Analog Input Option Board		Can be mounted in CPU Unit Option Board slot. 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution: 1/2000).	CP1W-ADB21 *
Analog Output Option Board		Can be mounted in CPU Unit Option Board slot. 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-DAB21V *
Analog I/O Option Board		Can be mounted in CPU Unit Option Board slot. 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution:1/2000). 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-MAB221 *

Note: It is not possible to use a CP-series Ethernet Option Board version 1.0 (CP1W-CIF41), LCD Option Board (CP1W-
DAM01), or Memory Card (CP1W-ME05M) with a CP1E CPU Unit.
* Support is provided with CP1E CPU Unit version 1.2 and later.

Expansion I/O Units and Expansion Units (for CP1E E30/40/60(S), N30/40/60(S[]), or NA20 CPU Units)

CP1E E10/14/20(S) or N14/20 CPU Units do not support Expansion I/O Units and Expansion Units.

Unit type	Product name	Specifications				Current consumption (A)		Model
Unit type	Product name	Inputs	Out- puts	Output type		5 V	24 V	Model
CP1W Expan- sion I/O Units	Input Unit	8	---	24 VDC Input		0.018	--	CP1W-8ED
	Output Units	---	8	Relay		0.026	0.044	CP1W-8ER
				Transistor (sinking)		0.075	--	CP1W-8ET
				Transistor (sourcing)		0.075	--	CP1W-8ET1
	Output Units	---	16	Relay		0.042	0.090	CP1W-16ER
				Transistor (sinking)		0.076	--	CP1W-16ET
				Transistor (sourcing)		0.076	--	CP1W-16ET1
	Output Units	---	32	Relay		0.049	0.131	CP1W-32ER
				Transistor (sinking)		0.113	--	CP1W-32ET
				Transistor (sourcing)		0.113	--	CP1W-32ET1
	I/O Units	12	8	Relay		0.103	0.044	CP1W-20EDR1
				Transistor (sinking)		0.130	--	CP1W-20EDT
				Transistor (sourcing)		0.130	--	CP1W-20EDT1
	I/O Units	24	16	Relay		0.080	0.090	CP1W-40EDR
				Transistor (sinking)		0.160	--	CP1W-40EDT
				Transistor (sourcing)		0.160	--	CP1W-40EDT1
CP1W Expan- sion Units	Analog Input Unit	4CH	--	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	0.100	0.090	CP1W-AD041
	Analog Input Unit	4CH	--		Resolution: 1/12000	0.100	0.050	CP1W-AD042
	Analog Output Unit	--	2CH	Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	0.040	0.095	CP1W-DA021
		--	4CH		Resolution: 1/6000	0.080	0.124	CP1W-DA041
		--	4CH		Resolution: 1/12000	0.070	0.160	CP1W-DA042
	Analog I/O Unit	4CH	4CH	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/12000	0.120	0.170	CP1W-MAD44
		4CH	2CH		Resolution: 1/12000	0.120	0.120	CP1W-MAD42
		2CH	1CH		Resolution: 1/6000	0.083	0.110	CP1W-MAD11
	Temperature Sensor Unit	2CH	--	Sensor type: Thermocouple (J or K)		0.040	0.059	CP1W-TS001
		4CH	--	Sensor type: Thermocouple (J or K)		0.040	0.059	CP1W-TS002
		2CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		0.054	0.073	CP1W-TS101
		4CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)		0.054	0.073	CP1W-TS102
		4CH	--	Sensor type: Thermocouple (J or K) 2channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA	Resolution: 1/12000	0.070	0.030	CP1W-TS003
		12CH	--	Sensor type: Thermocouple (J or K)		0.080	0.050	CP1W-TS004
	CompoBus/S I/O Link Unit	8	8	CompoBus/S slave		0.029	--	CP1W-SRT21

I/O Connecting Cable

Product name	Specifications	Model
I/O Connecting Cable	80 cm (for CP1W Expansion I/O Units and Expansion Units) Only one I/O Connecting Cable can be used in each PLC.	CP1W-CN811

Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion I/O Units and
Expansion Units.

DIN Track Accessories

Name		Specifications	Model
DIN Track		Length: 0.5 m; Height: 7.3 mm	PFP-50N
		Length: 1 m; Height: 7.3 mm	PFP-100N
		Length: 1 m; Height: 16 mm	PFP-100N2
	End Plate	A stopper to secure the Units on the DIN Track.	PFP-M

Programming Devices

Software

Product name	Specifications			Model
Product name		Number of licenses	Media	Model
FA Integrated Tool Package CX-One Lite Ver.4.[]	CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CX-Programmer Ver.9.[].	1 license	DVD	CXONE-LT01D-V4
FA Integrated Tool Package CX-One Package Ver. 4.[]	CX-One is a comprehensive software package that integrates Support Software for OMRON PLCs and components. CX-One runs on the following OS. OS: Windows 7 (32-bit/64-bit version) / Windows 8 (32-bit/64-bit version) / Windows 8.1 (32-bit/64-bit version) / Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].	1 license *	DVD	CXONE-AL01D-V4

Note: 1. The E20/30/40(S), N20/N30/N40(S) CPU Units are supported by CX-Programmer version 8.2 or higher.
The E10, E14, N14, N60, and NA20 CPU Units are supported by CX-Programmer version 9.03 or higher. When
Micro PLC Edition CXProgrammer is used, you need version 9.03 or higher.
The E60S CPU Units are supported by CX-Programmer version 9.42 or higher. When Micro PLC Edition CX-
Programmer is used, you need version 9.42 or higher.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
* Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.

The following tables lists the Support Software that can be installed from CX-One
